PVC Sheet pile

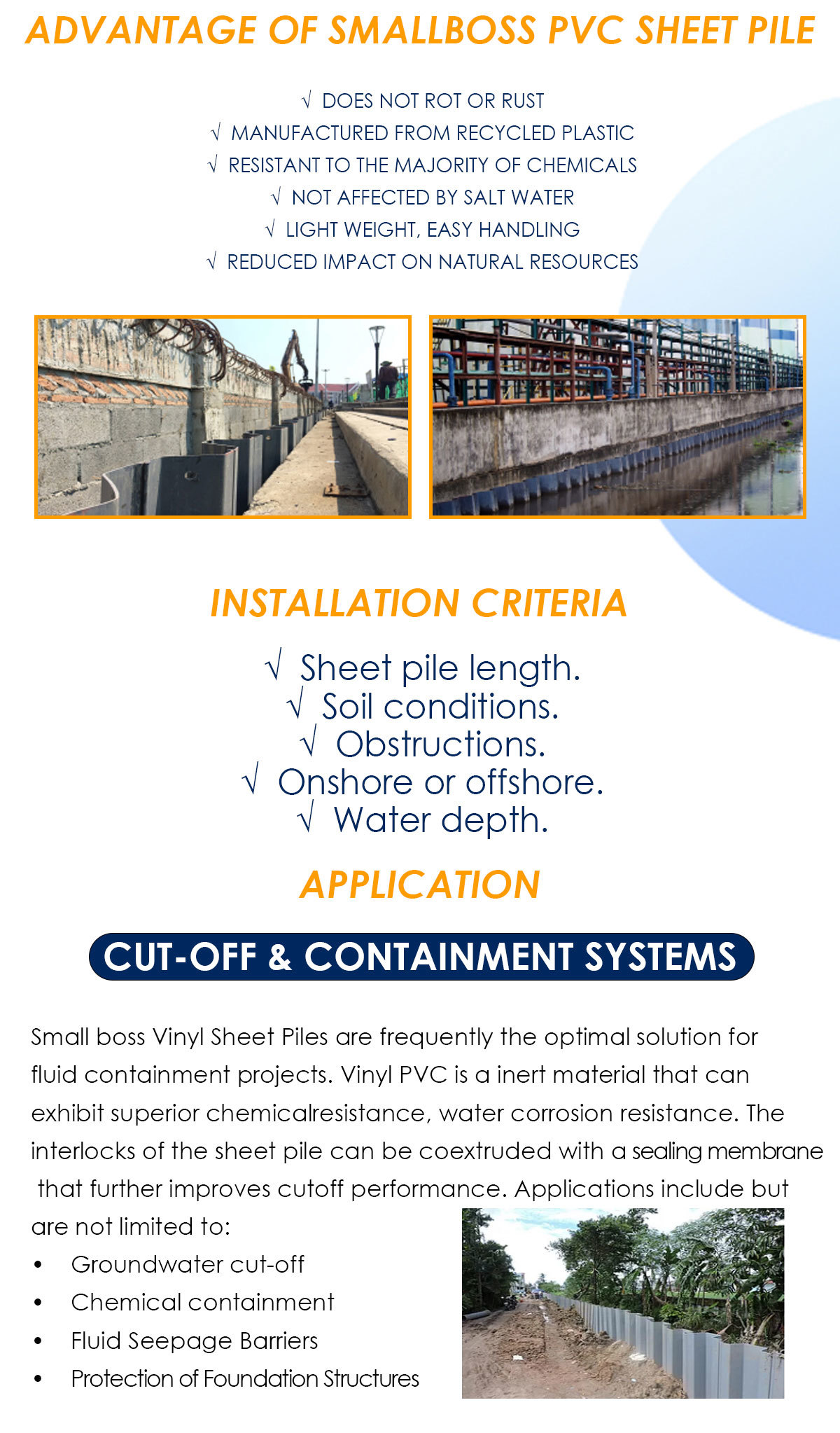

Application:  Groundwater cut-off ,Chemical containment ,Fluid Seepage Barriers ,Protection of Foundation Structures
What are pvc sheet pile: Small boss Vinyl Sheet Piles are frequently the optimal solution for fluid containment projects. Vinyl PVC is a inert material that can exhibit superior chemical resistance, water corrosion resistance. The interlocks of the sheet pile can be coextruded with a sealing membrane that further improves cutoff performance
+
  • 微信图片_20221206085102.jpg
  • SZ402 - 副本.jpg
  • 微信图片_20240607094847 - 副本.jpg
  • Sheet pile1.jpg
  • Sheet pile2.jpg
  • Sheet pile3.jpg
  • Sheet pile4.jpg
  • Sheet pile5.jpg
  • Sheet pile6.jpg
  • Sheet pile7.jpg
  • Sheet pile8.jpg
  • SZ457 type PVC sheet pile.jpg
  • Product detail

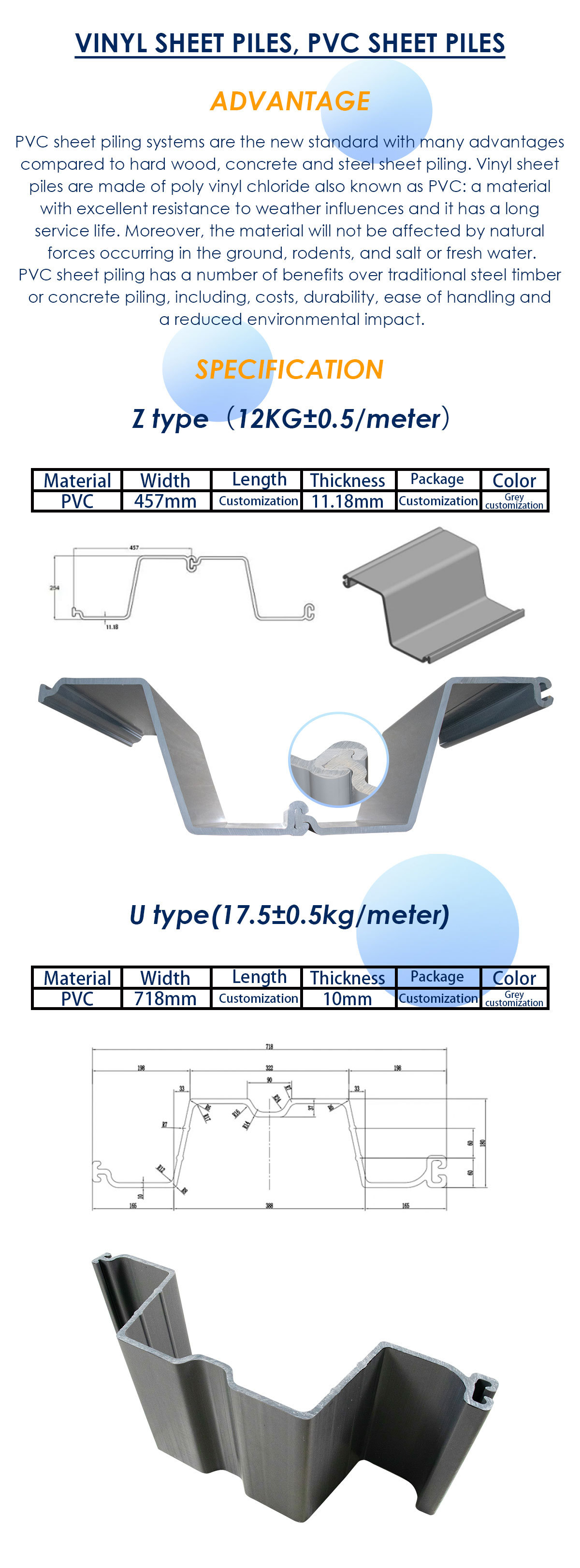

    ■ VINYL SHEET PILES, PVC Sheet Piles

    Small Boss’s innovative range of vinyl or PVC sheet Piling is an eco-friendly, highly corrosion resistant material that can be an effective alternative to steel sheet piles, concrete and wood materials

    PVC sheet piling systems are the new standard with many advantages compared to hard wood, concrete and steel sheet piling. Vinyl sheet piles are made of poly vinyl chloride also known as PVC: a material with excellent resistance to weather influences and it has a long service life. Moreover, the material will not be affected by natural forces occurring in the ground, rodents, and salt or fresh water. PVC sheet piling has a number of benefits over traditional steel timber or concrete piling, including, costs, durability, ease of handling and a reduced environmental impact.

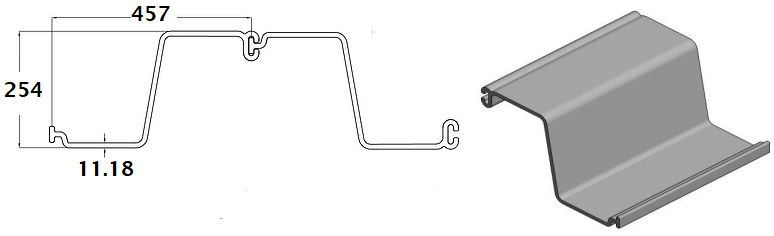

    ■ Specification

    Material    Type Width Length Thickness Color
    PVC Z 457mm 5/6/10/12meter/pc Customization 11.18mm Grey/customization
    PVC U 718 mm 5/6/10/12meter/pc Customization 9mm Grey/customization



    Material

    pvc

        Section Width

    457 mm

    Section depth

    254 mm

    Length

    Customization

    Thickness

    11.18  mm

    Package

    Customization

    Color

    Grey/customization

    Weight

    11.5±1 kg/m

    Moment of inertia

    22709 cm4/m

    Section modulus

    1717 cm3/m

    Ultimate moment

    7948 kg-m/m

    Tensile Strength

    44.8 Mpa

    Flexural Strength

    78 Mpa

    Modulus of Elasticity

    2620 Mpa

    Notched Izod impact

    2.46 Kg/cm

    Heat Deflection Temperature

    70℃

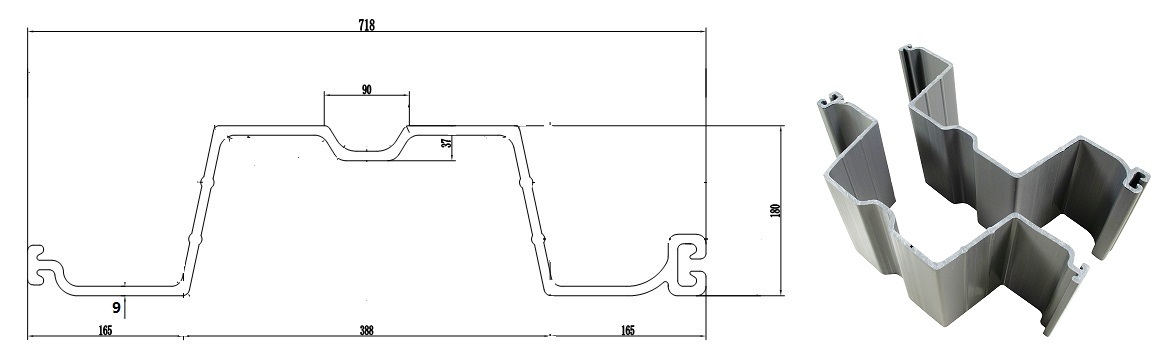

    Material

    pvc

        Section Width

    718 mm

    Section depth

    180 mm

    Length

    Customization

    Thickness

    10 mm

    Package

    Customization

    Color

    Grey/customization

    Weight

    17.5±1 kg/m

    Tensile Strength

    45.52 Mpa

    Flexural Strength

    68.87Mpa

    Modulus of Elasticity

    2980 Mpa

    Notched Izod impact

    8.08 KJ/㎡

    Heat Deflection Temperature

    81.1℃
